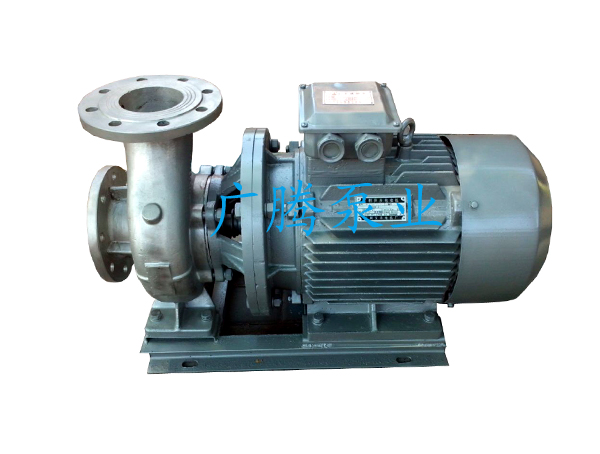

ISWH不锈钢化工管道泵产品概述
不锈钢化工泵采用最先进的水力模型，根据ISWH型单级单吸离心泵之性能参数和立式离心泵的独特结构组合设计，并严格按照标准进行设计制造，该不锈钢管道泵产品轴封选用硬质合金机械密封装置，具有高效节能、性能可靠、安装使用方便等特点。
一:不锈钢化工管道泵主要特点
1.化工管道泵运行平稳：泵轴的绝对同心度及叶轮优异的动静平衡，保证平稳运行，绝无振动。
2.滴水不漏：不同材质的硬质合金密封，保证了不同介质输送均无泄漏。
3.噪音低：两个低噪音的轴承支撑下的水泵，运转平稳，除电机微弱声响，基本无噪音。
4.故障率低：结构简单合理，关键部分采用国际一流品质配套，整机无故障工作时间大大提高。
5.维修方便：更换密封、轴承、简易方便。
6.占地更省：出口可向左、向右、向上三个方向，便管道布置安装，节省空间。
二:ISWH不锈钢化工管道泵主要用途
1、ISW卧式清水泵，供输送清水及物理化学性质类似于清水的其它液体之用，适用于工业和城市给排水、高层建筑增压送水、园林喷灌、消防增压、远距离输送、暖通制冷循环、浴室等冷暖水循环增压及设备配套，使用温度t≤80℃。
2、ISWR卧式热水泵广泛适用于：冶金、化工、纺织、造纸以及宾馆饭店等锅炉热水增压循环输送及城市采暖系统，iswr型使用温度t≤120℃。
3、ISWH化工不锈钢管道泵，供输送不含固体颗粒，具有腐蚀性、粘度类似于水的液体，适用于石油、化工、冶金、电力、造纸、食品制药和合成纤维等部门，使用温度为-20℃～+120℃。
4、ISWB卧式管道油泵，供输送汽油、煤油、柴油等油类产品或易燃、易爆液体，被输送介质温度为-20～ +120℃。 |
ISWH不锈钢化工泵 性能参数表
|
型号
|
流量
|
扬程
m
|
效率
%
|
转速
r/min
|
电机
功率
kw
|
汽蚀
余量
m
|
重量
kg
|
|
m3/h
|
l/s
|
|
ISWH25-110
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
16
15
13.5
|
34
42
41
|
2900
|
0.55
|
2.3
|
26
|
|
ISWH25-125
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
20.6
20
18
|
28
36
35
|
2900
|
0.75
|
2.3
|
28
|
|
ISWH25-125A
|
2.5
3.6
4.6
|
0.69
1.0
1.28
|
17
16
14.4
|
35
35
35
|
2900
|
0.55
|
2.3
|
27
|
|
ISWH25-160
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
33
32
30
|
24
32
33
|
2900
|
1.5
|
2.3
|
39
|
|
ISWH25-160A
|
2.6
3.7
4.9
|
0.12
1.03
1.36
|
29
28
26
|
31
31
31
|
2900
|
1.1
|
2.3
|
34
|
|
ISWH32-100I
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
13.2
12.5
11.3
|
48
54
53
|
2900
|
0.75
|
2.0
|
32
|
|
ISWH32-125
|
3.5
5.0
6.5
|
0.97
1.39
1.8
|
22
20
18
|
40
44
42
|
2900
|
0.75
|
2.3
|
28
|
|
ISWH32-125A
|
3.1
4.5
5.8
|
0.86
1.25
1.61
|
17.6
16
14.4
|
43
43
43
|
2900
|
0.55
|
2.3
|
28
|
|
ISWH32-160
|
3.1
4.5
5.8
|
0.86
1.25
1.61
|
33
32
30
|
34
40
42
|
2900
|
1.5
|
2.3
|
28
|
|
ISWH32-160I
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
33.2
32
30.2
|
34
40
42
|
2900
|
2.2
|
2.0
|
47
|
|
ISWH32-200
|
3.1
4.5
5.8
|
0.86
1.25
1.61
|
51
50
48
|
28
35
37
|
2900
|
3
|
2.0
|
47
|
|
ISWH32-200I
|
4.4
6.3
8.3
|
1.22
1.75
2.32
|
50.5
50
48
|
26
33
35
|
2900
|
4
|
2.0
|
43
|
|
ISWH32-200IA
|
2.8
4.0
5.2
|
0.78
1.11
1.44
|
44.6
44
42.7
|
34
40
42
|
2900
|
2.2
|
2.0
|
74
|
|
ISWH40-100
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
13.2
12.5
11.3
|
48
54
53
|
2900
|
0.55
|
2.3
|
32
|
|
ISWH40-100A
|
3.9
5.6
7.4
|
1.08
1.56
2.06
|
10.6
10
9
|
52
52
52
|
2900
|
0.37
|
2.3
|
32
|
|
ISWH40-125
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
21
20
18
|
41
46
43
|
2900
|
1.1
|
2.3
|
34
|
|
ISWH40-125A
|
3.9
5.6
7.4
|
1.08
1.56
2.06
|
17.6
16
14.4
|
40
45
41
|
2900
|
0.75
|
2.3
|
33
|
|
ISWH40-160
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
33
32
30
|
35
40
40
|
2900
|
2.2
|
2.3
|
47
|
|
ISWH40-160A
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
29
28
26.3
|
34
39
39
|
2900
|
1.5
|
2.3
|
43
|
|
ISWH40-160B
|
3.8
5.5
7.2
|
1.06
1.53
2.0
|
25.5
24
22.5
|
34
38
37
|
2900
|
1.1
|
2.3
|
38
|
|
ISWH40-200
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
51
50
48
|
26
33
32
|
2900
|
4
|
2.3
|
74
|
|
ISWH40-200A
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
45
44
42
|
26
31
30
|
2900
|
3
|
2.3
|
62
|
|
ISWH40-200B
|
3.7
5.3
7.0
|
1.03
1.47
1.94
|
38
36
34.5
|
29
29
29
|
2900
|
2.2
|
2.3
|
52
|
|
ISWH40-250
|
4.4
6.3
8.3
|
1.22
1.75
2.31
|
82
80
74
|
24
28
28
|
2900
|
7.5
|
2.3
|
105
|
|
ISWH40-250A
|
4.1
5.9
7.8
|
1.14
1.64
2.17
|
72
70
65
|
24
28
27
|
2900
|
5.5
|
2.3
|
98
|
|
ISWH40-250B
|
3.8
5.5
7.0
|
1.06
1.53
1.94
|
61.5
60
56
|
23
27
26
|
2900
|
4
|
2.3
|
77
|
|
ISWH40-100I
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
13.2
12.5
11.3
|
55 62 60
|
2900
|
1.1
|
2.3
|
34
|
|
ISWH40-100IA
|
8
11
14.5
|
2.22
3.05
4.03
|
10.6
10
9
|
60
60
60
|
2900
|
0.75
|
2.3
|
32
|
|
ISWH40-125I
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
21.2
20
17.8
|
49
58
57
|
2900
|
1.5
|
2.3
|
38
|
|
ISWH40-125IA
|
8
11
14.5
|
2.22
3.05
4.03
|
17
16
14
|
57
57
57
|
2900
|
1.1
|
2.3
|
33
|
|
ISWH40-160I
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
33
32
30
|
45
52
51
|
2900
|
3
|
2.3
|
56
|
|
ISWH40-160IA
|
8.2
11.7
15.2
|
2.28
3.25
4.22
|
29
28
26
|
44
51
50
|
2900
|
2.2
|
2.3
|
47
|
|
ISWH40-160IB
|
7.3
10.4
13.5
|
2.38
2.89
3.75
|
23
22
20.5
|
50
50
50
|
2900
|
1.5
|
2.3
|
43
|
|
ISWH40-200I
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
51.2
50
48
|
38
46
46
|
2900
|
5.5
|
2.3
|
85
|
|
ISWH40-200IA
|
8.3
11.7
15.3
|
2.31
3.25
4.25
|
45
44
42
|
37
45
45
|
2900
|
4
|
2.3
|
75
|
|
ISWH40-200IB
|
7.5
10.6
13.8
|
2.08
2.94
3.83
|
37
36
34
|
44
44
44
|
2900
|
3
|
2.3
|
63
|
|
ISWH40-250I
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
81.2
80
77.5
|
31
38
40
|
2900
|
11
|
2.3
|
145
|
|
ISWH40-250IA
|
8.2
11.6
15.2
|
2.28
3.22
4.22
|
71
70
68
|
38
38
38
|
2900
|
7.5
|
2.3
|
95
|
|
ISWH40-250IB
|
7.6
10.8
14
|
2.11
3.0
3.89
|
61.4
60
58
|
37
37
37
|
2900
|
7.5
|
2.3
|
94
|
|
ISWH40-250IC
|
7.1
10.0
13.1
|
1.97
2.78
3.64
|
53.2
52
50.4
|
36
36
36
|
2900
|
5.5
|
2.3
|
88
|
|
ISWH50-100
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
13.6
12.5
11.3
|
55
62
60
|
2900
|
1.1
|
2.3
|
36
|
|
ISWH50-100A
|
8
11
14.5
|
2.22
3.05
4.03
|
11
10
9
|
60
60
60
|
2900
|
0.75
|
2.3
|
35
|
|
ISWH50-125
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
21.5
20
17.8
|
49
58
57
|
2900
|
1.5
|
2.3
|
43
|
|
ISWH50-125A
|
8
11
14.5
|
2.22
3.05
4.03
|
17
16
14
|
57
57
57
|
2900
|
1.1
|
2.3
|
38
|
|
ISWH50-160
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
33
32
30
|
45
52
51
|
2900
|
3
|
2.3
|
59
|
|
ISWH50-160A
|
8.2
11.7
15.2
|
2.28
3.25
4.22
|
29
28
26
|
44
51
50
|
2900
|
2.2
|
2.3
|
51
|
|
ISWH50-160B
|
7.3
10.4
13.5
|
2.38
2.89
3.75
|
23
22
20.5
|
50
50
50
|
2900
|
1.5
|
2.3
|
47
|
|
ISWH50-200
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
52
50
48
|
38
46
46
|
2900
|
5.5
|
2.3
|
101
|
|
ISWH50-200A
|
8.3
11.7
15.3
|
2.31
3.25
4.25
|
45.8
44
42
|
37
45
45
|
2900
|
4
|
2.3
|
80
|
|
ISWH50-200B
|
7.5
10.6
13.8
|
2.08
2.94
3.83
|
37
36
34
|
44
44
44
|
2900
|
3
|
2.3
|
68
|
|
ISWH50-250
|
8.8
12.5
16.3
|
2.44
3.47
4.53
|
82
80
77.5
|
29
38
40
|
2900
|
11
|
2.3
|
160
|
|
ISWH50-250A
|
8.2
11.6
15.2
|
2.28
3.22
4.22
|
71.5
70
68
|
38
38
38
|
2900
|
7.5
|
2.3
|
115
|
|
|
|
|
ISWH50-250B
|
7.6
10.8
14
|
2.11
3.0
3.89
|
61.4
60
58
|
37
37
37
|
2900
|
7.5
|
2.3
|
114
|
|
ISWH50-250C
|
7.1
10.0
13.1
|
1.97
2.78
3.64
|
53.2
52
50.4
|
36
36
36
|
2900
|
5.5
|
2.3
|
108
|
|
ISWH50-100I
|
17.5
25
32.5
|
4.86
6.94
9.03
|
13.7
12.5
10.5
|
67
69
69
|
2900
|
1.5
|
2.5
|
41
|
|
ISWH50-100IA
|
15.6
22.3
29
|
4.3
6.19
8.1
|
11
10
8.4
|
65
67
68
|
2900
|
1.1
|
2.5
|
36
|
|
ISWH50-125I
|
17.5
25
32.5
|
4.86
6.94
9.03
|
21.5
20
18
|
60
68
67
|
2900
|
3
|
2.5
|
56
|
|
ISWH50-125IA
|
15.6
22.3
29
|
4.33
6.19
8.1
|
17
16
13.6
|
58
66
65
|
2900
|
2.2
|
2.5
|
48
|
|
ISWH50-160I
|
17.5
25
32.5
|
4.68
6.94
9.03
|
34.4
32
27.5
|
54
63
60
|
2900
|
4
|
2.5
|
72
|
|
ISWH50-160IA
|
16.4
23.4
30.4
|
4.56
6.5
8.44
|
30
28
24
|
54
62
59
|
2900
|
4
|
2.5
|
71
|
|
ISWH50-160IB
|
15.0
21.6
28
|
4.17
6.0
7.78
|
26
24
20.6
|
58
58
58
|
2900
|
3
|
2.5
|
59
|
|
ISWH50-200I
|
17.5
25
32.5
|
4.86
6.94
9.03
|
52.7
50
45.5
|
49
58
59
|
2900
|
7.5
|
2.5
|
108
|
|
ISWH50-200IA
|
16.4
23.5
30.5
|
4.56
6.53
8.47
|
46.4
44
40
|
48
57
58
|
2900
|
7.5
|
2.5
|
107
|
|
ISWH50-200IB
|
15.2
21.8
28.3
|
4.22
6.06
7.86
|
40
38
34.5
|
55
55
55
|
2900
|
5.5
|
2.5
|
100
|
|
ISWH50-250I
|
17.5
25
32.5
|
4.86
6.94
9.03
|
82
80
76.5
|
39
50
52
|
2900
|
15
|
2.5
|
175
|
|
ISWH50-250IA
|
16.4
23.4
30.5
|
4.56
6.5
8.47
|
71.5
70
67
|
39
50
52
|
2900
|
11
|
2.5
|
165
|
|
ISWH50-250IB
|
15
21.6
28
|
4.17
6.0
7.78
|
61
60
57.4
|
38
49
54
|
2900
|
11
|
2.5
|
165
|
|
ISWH50-315I
|
17.5
25
32.5
|
4.86
6.94
9.03
|
128
125
122
|
30
40
44
|
2900
|
30
|
2.5
|
310
|
|
ISWH50-315IA
|
16.6
23.7
31
|
4.61
6.58
8.6
|
115
113
110
|
30
40
44
|
2900
|
22
|
2.5
|
245
|
|
ISWH50-315IB
|
15.7
22.5
29.2
|
4.36
6.25
8.0
|
103
101
98
|
39
39
39
|
2900
|
18.5
|
2.5
|
215
|
|
ISWH50-315IC
|
14.4
20.6
26.8
|
4.0
5.72
7.44
|
86
85
83
|
38
38
38
|
2900
|
15
|
2.5
|
195
|
|
ISWH65-100
|
17.5
25
32.5
|
4.86
6.94
9.03
|
13.7
12.5
10.5
|
67
69
69
|
2900
|
1.5
|
2.5
|
46
|
|
ISWH65-100A
|
15.6
22.3
29
|
4.3
6.19
8.1
|
11
10
8.4
|
65
67
68
|
2900
|
1.1
|
2.5
|
41
|
|
ISWH65-125
|
17.5
25
32.5
|
4.86
6.94
9.03
|
21.5
20
18
|
60
68
67
|
2900
|
3
|
2.5
|
58
|
|
ISWH65-125A
|
15.6
22.3
29
|
4.33
6.19
8.1
|
17
16
14.4
|
58
66
65
|
2900
|
2.2
|
2.5
|
49
|
|
ISWH65-160
|
17.5
25
32.5
|
4.86
6.94
9.03
|
34.4
32
27.5
|
54
63
60
|
2900
|
4
|
2.5
|
75
|
|
ISWH65-160A
|
16.4
23.4
30.4
|
4.56
6.5
8.44
|
30
28
24
|
54
62
59
|
2900
|
4
|
2.5
|
75
|
|
ISWH65-160B
|
15.0
21.6
28
|
4.17
6.0
7.78
|
26
24
20.6
|
2900
|
3
|
2.5
|
63
|
|
|
ISWH65-200
|
17.5
25
32.5
|
4.86
6.94
9.03
|
52.7
50
45.5
|
49
58
59
|
2900
|
7.5
|
2.5
|
107
|
|
ISWH65-200A
|
16.4
23.5
30.5
|
4.56
6.53
8.47
|
46.4
44
40
|
48
57
58
|
2900
|
7.5
|
2.5
|
107
|
|
ISWH65-200B
|
15.2
21.8
28.3
|
4.22
6.06
7.86
|
40
38
34.5
|
55
55
55
|
2900
|
5.5
|
2.5
|
100
|
|
ISWH65-250
|
17.5
25
32.5
|
4.86
6.94
9.03
|
82
80
76.5
|
39
50
52
|
2900
|
15
|
2.5
|
180
|
|
ISWH65-250A
|
16.4
23.4
30.5
|
4.56
6.5
8.47
|
71.5
70
67
|
39
50
52
|
2900
|
11
|
2.5
|
170
|
|
ISWH65-250B
|
15
21.6
28
|
4.17
6.0
7.78
|
61
60
57.4
|
38
49
54
|
2900
|
11
|
2.5
|
170
|
|
ISWH65-315
|
17.5
25
32.5
|
4.86
6.94
9.03
|
127
125
122
|
32
40
44
|
2900
|
30
|
2.5
|
320
|
|
ISWH65-315A
|
16.6
23.7
31
|
4.61
6.58
8.6
|
115
113
110
|
32
40
44
|
2900
|
22
|
2.5
|
255
|
|
ISWH65-315B
|
15.7
22.5
29.2
|
103
101
98
|
39
39
39
|
2900
|
18.5
|
2.5
|
225
|
|
|
ISWH65-315C
|
14.4
20.6
26.8
|
4.0
5.72
7.44
|
86
85
83
|
38
38
38
|
2900
|
15
|
2.5
|
205
|
|
ISWH65-100I
|
35
50
65
|
9.72
13.9
18.1
|
13.8
12.5
10
|
67
73
70
|
2900
|
3
|
3.0
|
63
|
|
ISWH65-100IA
|
31.3
44.7
58
|
8.7
12.4
16.1
|
11
10
8
|
66
72
69
|
2900
|
2.2
|
3.0
|
53
|
|
ISWH65-125I
|
35
50
65
|
9.72
13.9
18.1
|
22
20
17
|
67
72.5
70
|
2900
|
5.5
|
3.0
|
99
|
|
ISWH65-125IA
|
31.3
45
58
|
8.7
12.5
16.1
|
17.5
16
13.6
|
66
71
69
|
2900
|
4
|
3.0
|
78
|
|
ISWH65-160I
|
35
50
65
|
9.72
13.9
18.1
|
35
32
28
|
63
71
70
|
2900
|
7.5
|
3.0
|
103
|
|
ISWH65-160IA
|
32.7
46.7
61
|
9.1
13.0
16.9
|
30.6
28
24
|
62
70
69
|
2900
|
7.5
|
3.0
|
103
|
|
ISWH65-160IB
|
30.3
43.3
56.3
|
8.4
12.0
15.6
|
26
24
21
|
69
69
69
|
2900
|
5.5
|
3.0
|
97
|
|
ISWH65-200I
|
35
50
65
|
9.72
13.9
18.1
|
53.5
50
46
|
55
67
68
|
2900
|
15
|
3.0
|
176
|
|
ISWH65-200IA
|
32.8
47
61
|
9.1
13.1
16.9
|
47
44
40
|
54
66
67
|
2900
|
11
|
3.0
|
166
|
|
ISWH65-200IB
|
30.5
43.5
56.6
|
8.5
12.1
15.7
|
40.6
38
33.4
|
65
65
65
|
2900
|
7.5
|
3.0
|
114
|
|
ISWH65-250I
|
35
50
65
|
9.72
13.9
18.1
|
83
80
72
|
52
59
60
|
2900
|
22
|
3.0
|
235
|
|
ISWH65-250IA
|
32.5
46.7
61
|
9.0
13.0
16.9
|
73
70
63
|
52
59
60
|
2900
|
18.5
|
3.0
|
205
|
|
ISWH65-250IB
|
30
43.3
56
|
8.3
12.0
15.6
|
62
60
54
|
58
58
58
|
2900
|
15
|
3.0
|
180
|
|
ISWH65-315I
|
35
50
65
|
9.72
13.9
18.1
|
128
125
121
|
44
54
57
|
2900
|
37
|
3.0
|
350
|
|
ISWH65-315IA
|
32.5
46.5
60.5
|
9.0
12.9
16.8
|
112.6
110
106.4
|
43
54
57
|
2900
|
30
|
3.0
|
335
|
|
ISWH65-315IB
|
31
44.5
58
|
8.6
12.4
16.1
|
102.5
100
98
|
53
53
53
|
2900
|
30
|
3.0
|
335
|
|
|
ISWH100-315A
|
66.5
95
123.6
|
18.5
26.4
34.3
|
119
113
103
|
65
66
67
|
2900
|
55
|
4.0
|
549
|
|
ISWH100-315B
|
63
90
117
|
17.5
25
32.5
|
106.6
101
92
|
65
65
65
|
2900
|
45
|
4.0
|
439
|
|
ISWH100-315C
|
58
82
107
|
16.1
22.8
29.7
|
90
85
76
|
63
63
63
|
2900
|
37
|
4.0
|
385
|
|
ISWH100-350
|
60
100
120
|
16.7
27.8
33.3
|
153.6
150
142
|
72
57
74
|
2900
|
90
|
4.0
|
950
|
|
ISWH100-350A
|
61
87
113
|
16.9
24.2
31.4
|
145.6
142
134
|
75
75
75
|
2900
|
75
|
4.0
|
830
|
|
ISWH100-350B
|
58
82
107
|
16.1
22.8
29.7
|
138.6
135
127
|
75
75
75
|
2900
|
55
|
4.0
|
600
|
|
ISWH100-100I
|
96
160
192
|
26.7
44.4
53.3
|
14
12.5
10
|
64
73
70
|
2900
|
11
|
4.5
|
115
|
|
ISWH100-125I
|
96
160
192
|
26.7
44.4
53.3
|
24
20
14
|
62
74
69
|
2900
|
15
|
4.5
|
168
|
|
ISWH100-125IA
|
84
140
168
|
23.3
39
46.7
|
20
17
12
|
64
72
69
|
2900
|
11
|
4.5
|
168
|
|
ISWH100-160I
|
96
160
192
|
26.7
44.4
53.3
|
36
32
27
|
69
79
75
|
2900
|
22
|
5.6
|
210
|
|
ISWH100-160IA
|
84
140
168
|
23.3
39
46.7
|
32
28
23.5
|
66
76
72
|
2900
|
18.5
|
5.0
|
210
|
|
ISWH100-200I
|
96
160
192
|
26.7
44.4
53.3
|
53
50
45
|
69
79
78
|
2900
|
37
|
5.2
|
402
|
|
ISWH100-200IA
|
84
140
168
|
23.3
39
46.7
|
48
45
40
|
64
74
73
|
2900
|
30
|
4.5
|
395
|
|
ISWH100-200IB
|
60
100
120
|
16.7
27.8
33.3
|
43
40
36
|
72
72
72
|
2900
|
22
|
4.5
|
360
|
|
ISWH100-250I
|
96
160
192
|
26.7
44.4
53.3
|
83
80
72
|
65
77
74
|
2900
|
55
|
4.8
|
560
|
|
ISWH100-250IA
|
84
140
168
|
23.3
39
46.7
|
75
72
65
|
60
72
69
|
2900
|
45
|
4.5
|
420
|
|
ISWH100-250IB
|
60
100
120
|
16.7
27.8
33.3
|
68
65
58
|
70
70
70
|
2900
|
37
|
4.5
|
400
|
|
ISWH125-100
|
96
160
192
|
26.7
44.4
53.3
|
13
12.5
12
|
82
82
82
|
2900
|
11
|
4.0
|
180
|
|
ISWH125-100A
|
86
143
172
|
23.9
39.7
47.8
|
10.4
10
9.6
|
77
77
77
|
290
|
7.5
|
4.0
|
125
|
|
ISWH125-125
|
96
160
192
|
26.7
44.4
53.3
|
22.6
20
17
|
80
80
80
|
2900
|
15
|
4.0
|
220
|
|
ISWH125-125A
|
86
143
172
|
23.9
39.7
47.8
|
18
16
13.6
|
77
77
77
|
2900
|
11
|
4.0
|
210
|
|
ISWH125-160
|
96
160
192
|
26.7
44.4
53.3
|
36
32
28
|
78
78
&, nbsp; 78
|
2900
|
22
|
4.0
|
265
|
|
ISWH125-160A
|
90
150
180
|
25
41
750
|
31.5
28
24.5
|
76
76
76
|
2900
|
18.5
|
4.0
|
230
|
|
ISWH125-160B
|
83
138
166
|
21.7
38.3
46.1
|
27
24
21
|
73
73
73
|
2900
|
15
|
4.0
|
215
|
|
ISWH125-200
|
96
160
192
|
26.7
44.4
53.3
|
55
50
46
|
77
77
77
|
2900
|
37
|
5.5
|
395
|
|
ISWH125-200B
|
83
138
166
|
21.7
38.3
46.1
|
41.3
37.4
34.5
|
75
75
75
|
2900
|
22
|
5.5
|
320
|
|
ISWH125-250
|
96
160
192
|
24.7
44.7
53.3
|
87
80
73
|
75
75
75
|
2900
|
55
|
5.0
|
580
|
|
ISWH125-250A
|
90
150
180
|
25
41.7
50
|
76
70
84
|
74
74
74
|
2900
|
45
|
5.5
|
490
|
|
ISWH125-250B
|
83
138
166
|
21.7
38.3
46.1
|
65
60
55
|
73
73
73
|
2900
|
37
|
5.5
|
430
|
|
ISWH125-215
|
96
160
192
|
26.7
44.7
53.3
|
133
125
119
|
70
70
70
|
2900
|
90
|
5.0
|
790
|
|
ISWH125-315A
|
90
150
180
|
25
41.7
50
|
117
110
104.6
|
70
70
70
|
2900
|
75
|
5.0
|
710
|
|
ISWH125-315B
|
86
143
172
|
23.9
39.7
47.8
|
106.4
100
95.2
|
69
69
69
|
2900
|
75
|
5.0
|
705
|
|
ISWH125-315C
|
80.5
134
161
|
22.4
37.2
44.7
|
96
88
86
|
67
67
67
|
2900
|
55
|
5.0
|
585
|
|
ISWH150-125
|
96
160
192
|
26.7
44.4
53.3
|
22.6
24
17
|
66
76
76
|
2900
|
11
|
4.0
|
210
|
|
ISWH150-125A
|
90
150
180
|
25
41.7
50
|
18
16
13.6
|
77
77
77
|
2900
|
7.5
|
4.0
|
130
|
|
ISWH150-160
|
96
160
192
|
26.7
44.4
53.3
|
36
32
27
|
75
75
75
|
2900
|
22
|
4.0
|
270
|
|
ISWH150-160A
|
90
150
180
|
25
41.7
50
|
32
28
23.5
|
76
76
76
|
2900
|
18.5
|
4.0
|
230
|
|
ISWH150-160B
|
84
141
168
|
23.3
39
46.7
|
27
24
21
|
73
73
73
|
2900
|
15
|
4.0
|
220
|
|
ISWH150-200
|
140
200
260
|
38.9
55.6
72.2
|
13.8
12.5
10.6
|
68
78
78
|
1450
|
15
|
3.0
|
265
|
|
ISWH150-200A
|
125
176
232.5
|
34.7
49.7
64.6
|
11
10
8.5
|
66
76
76
|
1450
|
11
|
3.0
|
244
|
|
ISWH150-200B
|
84
440
168
|
23.3
39
46.7
|
41
38
34
|
75
75
75
|
2900
|
22
|
4.0
|
275
|
|
ISWH150-250
|
140
200
260
|
38.9
55.6
72.2
|
21.8
20
17
|
73
79
77
|
1450
|
18.5
|
3.0
|
300
|
|
ISWH150-250A
|
129
184.4
240
|
35.8
51.2
66.7
|
18.5
17
14.4
|
72
78
76
|
1450
|
15
|
3.0
|
262
|
|
ISWH150-250B
|
117
167
217.5
|
32.5
46.4
60.4
|
15.2
14
12
|
76
76
76
|
1450
|
11
|
3.0
|
241
|
|
ISWH150-315
|
140
200
260
|
38.9
55.6
72.2
|
33.8
32
28
|
70
78
73
|
1450
|
30
|
2.5
|
410
|
|
ISWH150-315A
|
131
187
243
|
36.4
51.9
67.5
|
29.5
28
24.5
|
69
77
77
|
1450
|
22
|
3.5
|
335
|
|
ISWH150-315B
|
121
173
225
|
33.5
48.1
62.5
|
25
24
21
|
76
76
76
|
1450
|
18.5
|
3.5
|
315
|
|
ISWH150-350
|
96
160
192
|
26.7
44.4
53.3
|
153.6
150
142.8
|
80
80
80
|
2900
|
110
|
5.5
|
970
|
|
ISWH150-350A
|
90
150
180
|
25
41.7
50
|
145.6
142
134.8
|
70
70
70
|
2900
|
90
|
5.2
|
790
|
|
ISWH150-350B
|
84
140
168
|
23.3
39
46.7
|
138.6
35
127.8
|
65
76
74
|
2900
|
75
|
5.5
|
705
|
|
ISWH150-400
|
140
200
260
|
38.9
55.6
72.2
|
53
50
44
|
68
75
71
|
1450
|
45
|
3.5
|
490
|
|
|
|
|
ISWH150-400A
|
131
187
243
|
36.4
51.9
67.5
|
46.4
44
38.3
|
67
74
70
|
1450
|
37
|
3.5
|
454
|
|
ISWH150-400B
|
122
174
226.5
|
33.9
48.3
62.9
|
40
38
33
|
73
73
73
|
1450
|
60
|
3.5
|
435
|
|
ISWH150-400C
|
112
160
208
|
31.1
44.4
57.8
|
34
32
28
|
71
71
71
|
1450
|
22
|
3.5
|
365
|
|
ISWH150-250I
|
120
200
240
|
33.3
55.6
66.7
|
87
80
72
|
65
76
74
|
2900
|
75
|
4.5
|
702
|
|
ISWH150-250IA
|
112
187
224
|
31.1
51.9
62.2
|
76
70
63
|
64
75
73
|
2900
|
55
|
4.5
|
451
|
|
ISWH150-250IB
|
104
173
208
|
28.9
48.1
57.8
|
65
60
54
|
63
74
72
|
2900
|
45
|
4.5
|
460
|
|
ISWH150-315I
|
120
200
240
|
33.3
55.6
66.7
|
133
125
120
|
58
72
75
|
2900
|
110
|
4.5
|
980
|
|
ISWH150-315IA
|
112
187
224
|
31.1
51.9
62.2
|
116
110
105
|
57
72
74
|
2900
|
90
|
4.5
|
800
|
|
ISWH200-315IB
|
104
173
208
|
28.9
48.1
57.8
|
100
95
91
|
55
70
72
|
2900
|
75
|
4.5
|
724
|
|
ISWH200-200
|
140
200
260
|
38.9
55.6
72.2
|
13.8
12.5
10.6
|
68
78
78
|
1450
|
15
|
3.0
|
265
|
|
ISWH200-200A
|
125
179
232.5
|
34.7
49.7
64.6
|
11
10
8.5
|
66
76
76
|
1450
|
11
|
3.0
|
244
|
|
ISWH200-250
|
140
200
260
|
38.9
55.6
72.2
|
21.8
20
17
|
73
79
77
|
1450
|
18.5
|
3.0
|
305
|
|
ISWH200-250A
|
129
184.4
240
|
35.8
51.2
66.7
|
18.5
17
14.4
|
72
78
76
|
1450
|
15
|
3.0
|
267
|
|
ISWH200-250B
|
117
167
217.5
|
32.5
46.4
60.4
|
15.2
14
12
|
76
76
76
|
1450
|
11
|
3.0
|
246
|
|
ISWH200-315
|
140
200
260
|
38.9
55.6
72.2
|
33.8
32
28
|
70
78
78
|
1450
|
30
|
3.5
|
417
|
|
ISWH200-315A
|
131
189
243
|
36.4
51.9
67.5
|
29.5
28
24.5
|
69
77
77
|
1450
|
22
|
3.5
|
342
|
|
ISWH200-315B
|
121
173
225
|
33.6
48.1
62.5
|
25
24
21
|
76
76
76
|
1450
|
18.5
|
3.5
|
322
|
|
ISWH200-400
|
140
200
260
|
38.9
55.6
72.2
|
53
50
44
|
68
75
71
|
1450
|
45
|
3.5
|
498
|
|
ISWH200-400A
|
131
187
243
|
36.4
51.9
67.5
|
46.6
44
38.3
|
67
74
70
|
1450
|
37
|
3.5
|
462
|
|
ISWH200-400B
|
122
174
226.5
|
33.9
48.6
62.9
|
44
38
33
|
73
73
73
|
1450
|
30
|
3.5
|
443
|
|
ISWH200-400C
|
112
160
208
|
31.3
44.4
57.8
|
34
32
28
|
71
71
71
|
1450
|
22
|
3.5
|
373
|
|
ISWH200-200I
|
280
400
520
|
77.8
111.1
144
|
13.4
12.5
10.5
|
70
80
79
|
1450
|
22
|
4.0
|
382
|
|
ISWH200-200IA
|
250
358
465
|
69.4
99.4
129.2
|
10.7
10
8.5
|
68
78
77
|
1450
|
18.5
|
4.0
|
346
|
|
ISWH200-250I
|
280
400
520
|
77.8
111.4
144
|
22.2
20
14
|
75
80
72
|
1450
|
30
|
4.0
|
475
|
|
ISWH200-250IA
|
250
358
465
|
69.4
99.4
129.2
|
18
16
11.2
|
73
78
70
|
1450
|
22
|
4.0
|
405
|
|
ISWH200-250IB
|
226
322
419
|
62.8
89.4
116.4
|
14.4
13
7.3
|
70
75
67
|
1450
|
18.5
|
4.0
|
387
|
|
ISWH200-315I
|
280
440
520
|
77.8
111.4
144
|
36
32
26
|
73
80
75
|
1450
|
55
|
4.0
|
675
|
|
ISWH200-315IA
|
262
374
482
|
72.8
103.9
135
|
31.5
28
23
|
72
79
74
|
1450
|
45
|
4.0
|
560
|
|
ISWH200-315IB
|
242
346
450
|
67.2
96.1
125
|
27
24
19.5
|
78
78
78
|
1450
|
37
|
4.0
|
535
|
|
ISWH200-400I
|
280
400
520
|
77.8
111.4
144
|
54.5
50
39
|
75
81
77
|
1450
|
75
|
4.0
|
830
|
|
ISWH200-400IA
|
262
374
486
|
72.8
103.9
135
|
48
44
34
|
80
80
80
|
1450
|
75
|
4.0
|
830
|
|
ISWH200-400IB
|
242
346
450
|
67.2
96.1
125
|
41.4
38
29.6
|
78
78
78
|
1450
|
55
|
5.0
|
685
|
|
ISWH200-400IC
|
224
320
416
|
62.2
88.9
115.6
|
34.9
32
25
|
76
76
76
|
1450
|
45
|
5.0
|
580
|
|
ISWH250-250
|
350
550
650
|
97.2
152.8
180.5
|
22
20
16
|
78
82
81
|
1450
|
45
|
5.0
|
620
|
|
ISWH250-250A
|
300
500
600
|
83.3
139
166.7
|
18.3
17
14
|
76
80
80
|
1450
|
37
|
5.0
|
550
|
|
ISWH250-235
|
300
500
600
|
83.3
139
166.7
|
14
12.5
11
|
73
78
70
|
1450
|
22
|
4.5
|
410
|
|
ISWH250-300
|
300
500
600
|
83.3
139
166.7
|
22
20
16
|
78
78
78
|
1450
|
37
|
4.5
|
550
|
|
ISWH250-315
|
350
550
650
|
97.2
152.8
180.5
|
34
32
28
|
76
80
79
|
1450
|
75
|
5.5
|
890
|
|
ISWH250-315A
|
300
500
600
|
83.3
139
166.7
|
29.5
28
24
|
74
78
77
|
1450
|
55
|
5.5
|
690
|
|
ISWH250-315B
|
260
450
520
|
72.2
125
144.4
|
25
24
20
|
70
74
72
|
1450
|
45
|
5.5
|
620
|
|
ISWH250-400
|
300
500
600
|
83.3
139
166.7
|
54.5
50
39
|
72
72
72
|
1480
|
90
|
4.5
|
1530
|
|
ISWH300-235
|
480
720
900
|
133.3
200
250
|
20
18
15.5
|
77
81
74
|
970
|
55
|
5.0
|
1120
|
|
ISWH300-235A
|
438
607
821
|
121.7
182.5
228.1
|
16.5
15
13
|
75
79
72
|
970
|
45
|
5.0
|
1030
|
|
ISWH300-235B
|
400
600
750
|
111.1
167.0
208.3
|
14
12.5
11
|
73
77
70
|
970
|
37
|
5.0
|
890
|
|
ISWH300-300
|
480
720
900
|
133.3
200
250
|
31
28
25
|
77
81
77
|
970
|
75
|
5.0
|
1350
|
|
ISWH300-300A
|
444
666
833
|
123.3
185
231.4
|
26.5
24
21.5
|
76
80
76
|
970
|
75
|
5.0
|
1350
|
|
ISWH300-300B
|
415
623
779
|
115.3
173.1
261.4
|
23
21
18.5
|
79
79
79
|
970
|
55
|
5.0
|
1170
|
|
ISWH300-380
|
480
720
900
|
133.3
200
250
|
48
44
34
|
84
84
84
|
970
|
132
|
5.0
|
1900
|
|
ISWH300-380A
|
444
666
833
|
123.3
185
231.4
|
41.4
38
30
|
80
80
80
|
970
|
110
|
5.0
|
1700
|
|
ISWH300-380B
|
409
614
767
|
113.6
170.6
213.1
|
35
32
25
|
78
78
78
|
970
|
90
|
5.0
|
1530
|
|
ISWH300-235I
|
718
1080
1345
|
199.4
300
373.6
|
44.6
40
34.6
|
82
82
82
|
1450
|
160
|
5.5
|
1680
|
|
ISWH300-235IA
|
642
965
1203
|
178.3
268.1
334.2
|
35.7
32
27.7
|
80
80
80
|
1450
|
132
|
5.5
|
1440
|
|
ISWH200-315I
|
280
440
520
|
77.8
111.4
144
|
36
32
26
|
73
80
75
|
1450
|
55
|
4.0
|
675
|
|
ISWH200-315IA
|
262
374
482
|
72.8
103.9
135
|
31.5
28
23
|
72
79
74
|
1450
|
45
|
4.0
|
560
|
|
ISWH200-315IB
|
242
346
450
|
67.2
96.1
125
|
27
24
19.5
|
78
78
78
|
1450
|
37
|
4.0
|
535
|
|
ISWH200-400I
|
280
400
520
|
77.8
111.4
144
, ,
|
54.5
50
39
|
75
81
77
|
1450
|
75
|
4.0
|
830
|
|
ISWH200-400IA
|
262
374
486
|
72.8
103.9
135
|
48
44
34
|
80
80
80
|
1450
|
75
|
4.0
|
830
|
|
ISWH200-400IB
|
242
346
450
|
67.2
96.1
125
|
41.4
38
29.6
|
78
78
78
|
1450
|
55
|
5.0
|
685
|
|
ISWH200-400IC
|
224
320
416
|
62.2
88.9
115.6
|
34.9
32
25
|
76
76
76
|
1450
|
45
|
5.0
|
580
|
|
ISWH250-250
|
350
550
650
|
97.2
152.8
180.5
|
22
20
16
|
78
82
81
|
1450
|
45
|
5.0
|
620
|
|
ISWH250-250A
|
300
500
600
|
83.3
139
166.7
|
18.3
17
14
|
76
80
80
|
1450
|
37
|
5.0
|
550
|
|
ISWH250-235
|
300
500
600
|
83.3
139
166.7
|
14
12.5
11
|
73
78
70
|
1480
|
22
|
4.5
|
410
|
|
ISWH250-300
|
300
500
600
|
83.3
139
166.7
|
22
20
16
|
78
78
78
|
1480
|
37
|
4.5
|
550
|
|
ISWH250-315
|
350
550
650
|
97.2
152.8
180.5
|
34
32
28
|
76
80
79
|
1450
|
75
|
5.5
|
890
|
|
ISWH250-315A
|
300
500
600
|
83.3
139
166.7
|
29.5
28
24
|
74
78
77
|
1450
|
55
|
5.5
|
690
|
|
ISWH250-315B
|
260
450
520
|
72.2
125
144.4
|
25
24
20
|
70
74
72
|
1450
|
45
|
5.5
|
620
|
|
ISWH250-400
|
300
500
600
|
83.3
139
166.7
|
54.5
50
39
|
72
72
72
|
1480
|
90
|
4.5
|
1530
|
|
ISWH250-235
|
480
720
900
|
133.3
200
250
|
20
18
15.5
|
77
81
74
|
970
|
55
|
5.0
|
1120
|
|
ISWH250-235A
|
438
607
821
|
121.7
182.5
228.1
|
16.5
15
13
|
75
79
72
|
970
|
45
|
5.0
|
1030
|
|
ISWH250-235B
|
400
600
750
|
111.1
167.0
208.3
|
14
12.5
11
|
73
77
70
|
970
|
37
|
5.0
|
890
|
|
ISWH300-300
|
480
720
900
|
133.3
200
250
|
31
28
25
|
77
81
77
|
970
|
75
|
5.0
|
1350
|
|
ISWH300-300A
|
444
666
833
|
123.3
185
231.4
|
26.5
24
21.5
|
76
80
76
|
970
|
75
|
5.0
|
1350
|
|
ISWH300-300B
|
415
623
779
|
115.3
173.1
261.4
|
23
21
18.5
|
79
79
79
|
970
|
55
|
5.0
|
1170
|
|
ISWH300-380
|
480
720
900
|
133.3
200
250
|
48
44
34
|
84
84
84
|
970
|
132
|
5.0
|
1900
|
|
ISWH300-380A
|
444
666
833
|
123.3
185
231.4
|
41.4
38
30
|
80
80
80
|
970
|
110
|
5.0
|
1700
|
|
ISWH300-380B
|
409
614
767
|
113.6
170.6
213.1
|
35
32
25
|
78
78
78
|
970
|
90
|
5.0
|
1530
|
|
ISWH300-235I
|
718
1080
1345
|
199.4
300
373.6
|
44.6
40
34.6
|
82
82
82
|
970
|
160
|
5.5
|
1680
|
|
ISWH300-235IA
|
642
965
1203
|
178.3
268.1
334.2
|
35.7
32
27.7
|
80
80
80
|
970
|
132
|
5.5
|
1440
|
|
|
如何安装泵,如何安装水泵
如何安装水泵：
（1）根据工艺要求和泵的汽蚀条件进行安装高度校核及地基土建工程。
（2）安装前准备一系列厚度不一的平垫片和楔垫片，以备调整时使用。
（3）根据泵所输送介质的特性，确定连接处垫片的材质并加工垫片。
（4）安装前应确保所有与泵相连的管道应洁净，不得有任何对泵有可能造成损伤的固体异物。
（5）对吸人口、排出口或敞开的泵应用盲法兰或其他东西进行封堵，以保证安装过程中无杂物进入泵腔。
（6）检查泵随机资料是否完备、齐全；泵外表有无明显损伤。只有资料齐全，泵无明显损伤方可继续安装。
（7）安装带有联轴器的离心泵时应手盘车，缓慢转动联轴器或带轮，观察水泵转动是否平稳、灵活、均调，转子部件有无卡阻、泵内有无杂物碰撞声，轴承运转是否正常，带松紧是否合适等。
（8）查地基的水平度是否合适及地基尺寸是否与泵安装尺寸相对应。
（9）找正泵与电机、泵组与地脚螺栓和进出口法兰的位置关系，确保泵的法兰扭矩符合标准规定。找正前应检查进出口管路，保证进出口管路的重量不对泵产生作用力或力矩。找正时还应注意消除泵转子的窜动，以免端面间隙产生误差。如果在泵工作后检查，应在冷态下进行。需要提请注意的是，成套出厂的泵机组，出厂时只进行了粗找正（用直尺检查），由于运输时可能产生位移，用户使用时必须再进行精确找正。
（10）用垫片调整泵的位置，用地脚螺栓将泵与地基连接；去掉进出口法兰封盖用螺栓将泵与管路连接；若无规定时，应符合现行国家标准《机械设备安装工程施工及验收通用规范》的规定。
（11）盘车，缓慢转动清水离心泵联轴器或带轮，再次观察水泵转动是否平稳、灵活、均调，转子部件有无卡阻、泵内有无杂物碰撞声，轴承运转足否正常，带松紧是否合适等。
（12）检查各连接处的密封性。
|
|
|
